Case erecting/packing/sealing machine ( by side loading)
Case erecting/packing/sealing machine ( by side loading)
Type:YZ-SLS15

It integrates carton erector, carton packer, carton sealer and the buffering conveyor system between them into one machine. It's side loading type case packer. This model is suitable for packing cartons with various size. It can be used separately or on-line with front-end and back-end machines.

src=http___img005.hc360.cn_g6_M08_EB_7E_wKhQr1O_olOESxfRAAAAAFyYzvk248.jpg&refer=http___img005.hc360.jpg
T12-ZJ 主机机构12_副本.jpg

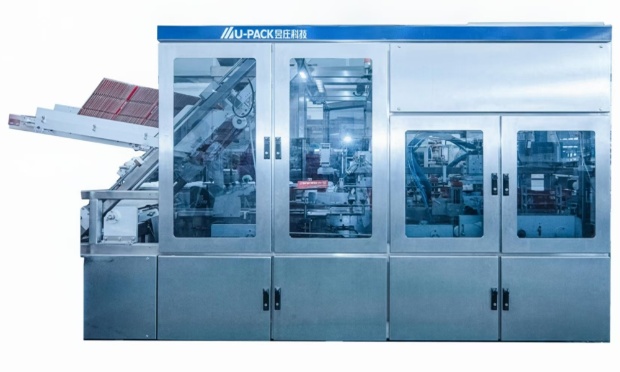

3 In 1 Case Packer( One Machine For Case Erecting, Case Packing And Case Sealing)

  • Impact footprint

  • Bucked carton feeding conveyor is driven by servo motor.

  • The products loading device is driven by servo motor. Machine stops automatically when overloading.

  • The main transfer system is driven by servo motor.

  • The case erecting device is full-care type, which ensures that the case is treated gently.

  • All adjustable parts are equipped with digital display.

  • Equipped with drain tray to prevent the contamination on the machine caused by products leaking.

  • Stainless steel machine frame


Parameters

ItemsParameters
Machine size(L*W*H, unit: mm)4850*1680*1800
Weight3500kg
Voltage3-phase,380V,50HZ
Case size(L*W*H, unit:mm)Min.:  200*160*90  Max.: 450*350*250(Customized is available)
CapacityMax. Speed:15 cases/min (depends on exact case requirement)
Power6KW

Working flow

side loading case packer.jpg

No.Working flowNote
1Product infeeding    The infeeding pattern depends on the exact requirement.

2

Pattern formingThe collating solution depends on the exact layer pattern.
3groupped products transferingThe buffer stations are subject to the exact project
4Case magazineMagazine capacity is adjustable.
5Case erectingDriven by servo unit.
6Case loadingDriven by servo unit
7Top flaps folding Floding main flaps and side flaps
8Tape sealingTwo sides sealing by adhesive tape
9Sealed case outputConnecting to the conveyor of downstream machine



Components information

ItemsBrand and Supplier
PLCSiemens, Germany

Touchscreen

Beijer, Sweden
MotorSew, Germany
Servo motorSiemens, Germany
InvertorDanfoss,Danmark
SensorP+F, Germany
Pneumatic componentsFESTO
Low voltage electrical parts Moeller, Germany
Machine frameStainless steel
